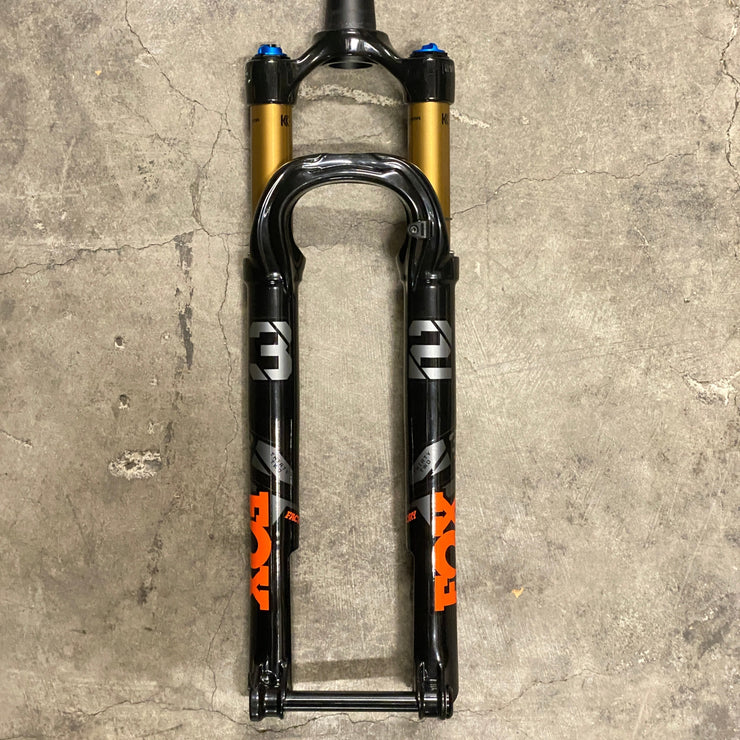

32 Factory Step-Cast Blem Fork (100mm Spacing)

This item is sold as-is.

Our Online Warehouse Sale features sample items, slightly used test ride & photoshoot items, items with slight cosmetic blemishes, and one-off custom builds. There could be blemishes or dents.

All items are inspected by one of our expert mechanics before shipment. This item is sold as-Is and no exchanges/returns will be accepted under any circumstances.

Notes:

• Open Box / Missing original packaging
• Steerer cut to 185mm

PRODUCT:

Competition drives innovation, and as cross-country athletes and course designers push the boundaries of lightweight components, 32 Step-Cast Factory rises to meet the demand. A redesigned crown for 2020 increases stiffness to the same level as the trail-proven 34. The distinct shape of the Step-Cast chassis uses a narrow stance to save weight and the step design makes room for the spokes and brake rotor.

FEATURES:

• Genuine Kashima Coating on upper tubes
• 32 mm upper tubes and ample bushing overlap for a quality ride
• Hollowed out lower legs provide even more weight savings
• FIT4 damper and FLOAT air spring

SPECS:

• Positive Spring: Air
• Wheel Size: 29"
• Brake Type: Post Mount 160
• Crown Race: 40mm
• External Adjustments: Low Speed Compression Damping , Rebound Damping
• Negative Spring: Air
• Stanchion Diameter: 32mm
• Steerer Type: Tapered
• Maximum Tire Width: 58mm
• Offset: 44mm
• Steerer Tube Length: 264mm
• Front Axle: 15mm Thru x 100mm
• S.H.I.S. Stem Clamp Diameter: 28.6mm
• Travel: 100mm
• Axle to Crown Length: 501mm
• Lockout Switch: Crown
• Color: Black
